| Place of Origin: | CHINA |
| Brand Name: | Helm Tower Hydraulic |
| Certification: | ISO9001 |
| Model Number: | MCR03 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 500usd |
| Packaging Details: | wooden case |
| Delivery Time: | 10days |
| Payment Terms: | L/C |
| Supply Ability: | 450 sets per month |
| Certificate: | ISO9001:2008 | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Rexroth Hydraulic Motors | Color: | Follow Customer's Requirement |
| Application: | Machinery | Pressure: | High Pressure |
| High Light: | radial piston hydraulic motor,axial piston hydraulic motor |
||

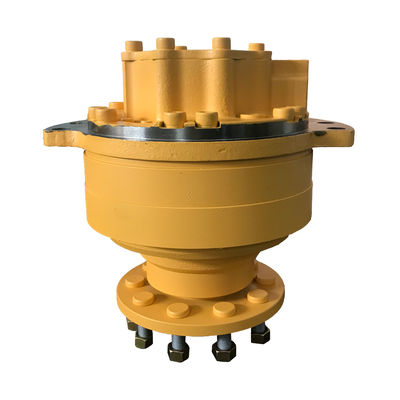

Rexroth Final Drive Motor MCR5/MCRE5 MCR5C820F180Z32A0M01 Hydraulic Piston Wheel Motor For BOBCAT T190 Skid Steer
Product Features:
MCR05 Radial piston hydraulic motor
Incurve radial piston type hydraulic motor
Could replace Rexroth same series hydraulic motor perfectly
Designed in control modules,combine freely
High efficiency,High pressure, low noise
Radial piston,Low speed,High torque
| Type | MCR05-380 | MCR05-470 | MCR05-520 | MCR05-565 | MCR05-680 | MCR05-750 |
| Displacement(ml/r) | 380 | 470 | 520 | 565 | 680 | 750 |
| Continuous output power(kw) | 29 | 29 | 29 | 29 | 35 | 35 |
| Differential pressure 10Mpa torque(Nm) | 604 | 748 | 827 | 899 | 1082 | 1194 |
| Rated torque(Nm) | 1419 | 1756 | 1942 | 2111 | 2540 | 2802 |
| Pressure rating(Mpa) | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. pressure(Mpa) | 40 | 40 | 40 | 40 | 40 | 40 |
| Max. speed(rpm) | 220 | 220 | 220 | 220 | 220 | 170 |
MCR05 Applications:
Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill
Engineering Machinery:Skid Steer Loader,Break Machine,
Packaging
1) By air: Anti-rust treatment + suitable carton box + outer carton box + packing belt.
2) By sea: Anti-rust treatment + suitable carton box + wooden box + metal belt.
3) As the client's requirement.
Shipping
urgent & small gross weight by air
big gross weight by sea
