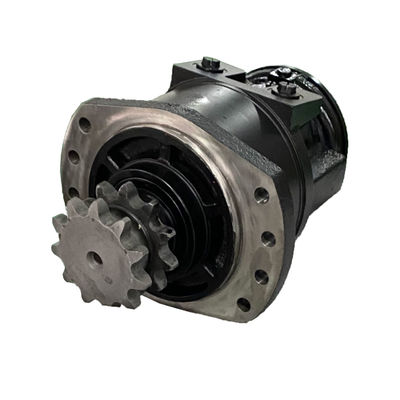

High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction

High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction

  • High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction
  • High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction
  • High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction
  • High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction
  • High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction
  • High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction
  • High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction
High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction
Product Details:
Place of Origin: CHINA
Brand Name: Helm Tower Hydraulic
Certification: ISO9001
Model Number: MCR05
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 10days
Payment Terms: L/C
Supply Ability: 450 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Color: Follow Customer's Requirement
Application: Machinery Pressure: High Pressure
Delivery Time: 5-7 Days Package: Wooden Case
High Light:

radial piston hydraulic motor

,

axial piston hydraulic motor

Rexroth Final Drive MCRE03 MCR05 high torque low speed hydraulic radial piston motor



Rexroth MCR3/MCRE3 Hydraulic Motor:

This Series Hydraulic Motor is one kind of low speed high torque radial piston motor with advanced design in disc distribution flow, piston structure, high pressure rating, smooth running at very low speeds, available with different valves, brakes.
It is widely applied in Construction Machinery( skid steer loader,breal machine), Mining Machinery(road header, scraper, heavy duty handing car, coal mine drill), etc.
High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction 0High Pressure Hydraulic Rotary Motor Industrial Hydraulic Motor For Construction 1

Code MCR03
Displacement Group 7 0 1 2
Displacement(ml/r) 160 225 255 280
Theoretical torque at 10 MPa(N.m) 254 357 405 445
Rated speed(r/min) 250 160 160 125
Rated pressure(Mpa) 25 25 25 25
Rated torque(N.m) 530 740 830 920
Max pressure(Mpa) 31.5 31.5 31.5 31.5
Max torque(N.m) 650 910 1030 1130
Speed range(r/min) 0-670 0-475 0-420 0-385
Max power(kW) 18
