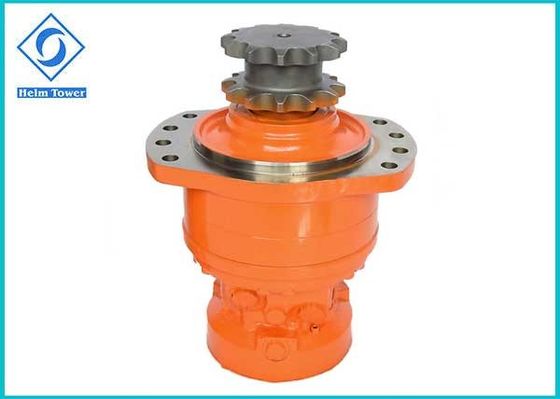

High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator

High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator

    • High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator
    • High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator
  • High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator

    Product Details:

    Place of Origin: Ningbo
    Brand Name: Helm Tower
    Certification: ISO 9001
    Model Number: MS02

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 7-15 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Type: Piston Motor Color: Customized
    Speed: 0-310 R/min Torque: 643-953 N.m
    Rated Pressure: 25 MPa Max. Pressure: 40 MPa

    Poclian MS02 MSE02 Roller Stator High Torque Hydraulic Piston Motor



    MS02 hydraulic motor is widely used in coal mine drill, road sweeping machine, aircraft tractor(wheeled), beaming carrier/hoisting machines, small agricultural vehicles, road header, scraper, excavator, heavy-duty, track, coal mine drilling machine and ditching machine.



    1). Radial piston type;

    2). Adopt Imported Bearing and Oil Seal, etc.

    3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.

    4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.

    5). Motor with multi-disc brake.

    6). Motor emission control.





    Code HMS02 HMSE02
    Displacement Group 8 0 1 2 0 1 2
    Displacement(ml/r) 172 213 235 255 332 364 398
    Theoretical torque at 10Mpa(N.m) 273 339 374 405 528 579 633
    Rated speed(r/min) 200 200 160 160 160 125 100
    Rated pressure(Mpa) 25 25 25 25 25 25 25
    Rated torque(N.M) 550 700 750 800 1100 1150 1300
    Max.pressure(Mpa) 31.5 31.5 31.5 31.5 31.5 31.5 31.5
    Max.torque(N.m) 650 850 950 1000 1300 1450 1600
    Speed range(r/min) 0-390 0-310 0-285 0-260 0-200 0-182 0-165
    Max.power(kW)

    Standard displacement is 18kW(HMSE02 22kW),

    variable displacement priority rotation 12kW(HMSE02 16.5kW),

    no priority is 9kW(HMSE02 11kW)





    High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator





    High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator

    High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator





    Applications:



    Mining Machinery:Coal Mine Drill, Heavy Duty Handling Car.

    Engineering Machinery:Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.

    Farming Machinery: Mini Farming Vehicle, Ditcher.



    High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller StatorHigh Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator





    High precision testing facilities and experienced inspectors.



    High Torque Hydraulic Piston Motor Replacement MS02 MSE02 Roller Stator
