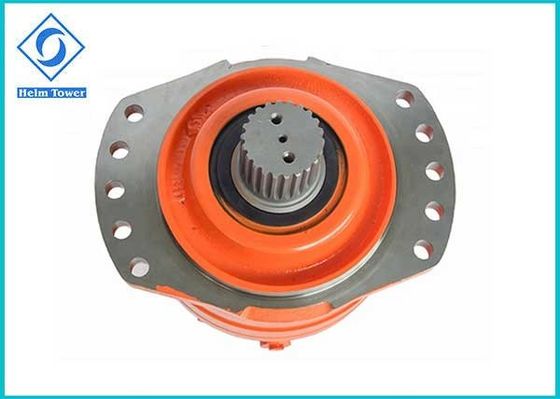

Hydraulic Radial Piston Wheel Double / Single Speed Motor For Mining Machinery

Hydraulic Radial Piston Wheel Double / Single Speed Motor For Mining Machinery

  • Hydraulic Radial Piston Wheel Double / Single Speed Motor For Mining Machinery
Hydraulic Radial Piston Wheel Double / Single Speed Motor For Mining Machinery
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS02
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Piston Motor Color: Customized
Speed: 0-310 R/min Torque: 643-953 N.m
Rated Pressure: 25 MPa Max. Pressure: 40 MPa
High Light:

radial piston hydraulic motor

,

axial piston hydraulic motor

Poclain Wheel Piston Motor MS02 Polain Engine For Rocksaw Poclian MSE02 Hydraulic



Features:



Poclain MS02 Hydraulic Motor

1). Radial piston type;

2). Adopt Imported Bearing and Oil Seal, etc.

3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.
4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.







Code HMS02 HMSE02
Displacement Group 8 0 1 2 0 1 2
Displacement(ml/r) 172 213 235 255 332 364 398
Theoretical torque at 10Mpa(N.m) 273 339 374 405 528 579 633
Rated speed(r/min) 200 200 160 160 160 125 100
Rated pressure(Mpa) 25 25 25 25 25 25 25
Rated torque(N.M) 550 700 750 800 1100 1150 1300
Max.pressure(Mpa) 31.5 31.5 31.5 31.5 31.5 31.5 31.5
Max.torque(N.m) 650 850 950 1000 1300 1450 1600
Speed range(r/min) 0-390 0-310 0-285 0-260 0-200 0-182 0-165
Max.power(kW)

Standard displacement is 18kW(HMSE02 22kW),

variable displacement priority rotation 12kW(HMSE02 16.5kW),

no priority is 9kW(HMSE02 11kW)







Product Applications



Applications:



Mining Machinery:Coal Mine Drill, Heavy Duty Handling Car.

Engineering Machinery:Scavenging Machine, Aircraft Tractor, Beam Carrier/Hoisting Machine.

Farming Machinery: Mini Farming Vehicle, Ditcher.





Hydraulic Radial Piston Wheel Double / Single Speed Motor For Mining Machinery 0



Hydraulic Radial Piston Wheel Double / Single Speed Motor For Mining Machinery 1Hydraulic Radial Piston Wheel Double / Single Speed Motor For Mining Machinery 2





High precision testing facilities and experienced inspectors.



Hydraulic Radial Piston Wheel Double / Single Speed Motor For Mining Machinery 3
