High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery

High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery

High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery
High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery

Product Details:

Place of Origin: Ningbo China
Brand Name: Helm Tower
Certification: ISO9001
Model Number: Rexroth A10V

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 pieces per month
Contact Now
Detailed Product Description
Package: Wooden Case Certification: ISO9001
Warranty: 1 Year Product Name: Hydraulic Piston Pump
Power: Hydraulic Speed: High Speed
Usage: Construction Machinery Color: According To Customer Demand
Piston Pump: Rexroth Piston Pump Model Number: A10V(S)O 16/28/45/71/100/140
MOQ: 1 Set Port: Ningbo,shanghai,qingdao...
High Light:

axial piston pump

,

radial piston pump

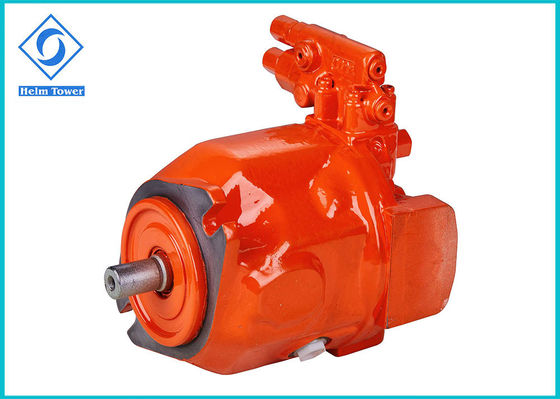

High pressure Rexroth A10V A10VSO Hydraulic Axial Piston Pump for Excavator mine machinery



The characteristics of A10VSO pump:





1.Completely interchangeable with original

2.Very competitive price

3.Low-noise, high efficiency, high reliability, long life

4.Small size, high power density

5.Excellent oil absorption properties.

6.1 year of warranty

7.For engineering machinery, maritime and boat and industrial machinery etc.

8.For open-loop Swashplate axial piston pump.

9.Continuous working pressure up to 280bar, the instantaneous maximum working pressure up to 350bar.

10.Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable

11.There are constant pressure, constant-power constant pressure, constant-voltage constant-flow and other control method, and the control response speed

12.Drive shaft can withstand the axial and radial loads

13.SAE and ISO mounting flange

14.For pass-axis structure, and for multi-loop system

15.Start at any time in pressure condition.





High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery 0


Specification data:



Type A10VSO16 A10VSO18 A10VSO28 A10VSO45 A10VSO71 A10VSO100 A10VSO140
Sizes 18 18 28 45 71 100 140
Displacement Vg max cm3 18 18 28 45 71 100 140
Max speed nmax rpm 3300 3300 3000 2600 2200 2000 1800
Max. flow In nmax qv L/min 59.4 59.4 84 117 156 200 252
in 1500 r/min 27 27 42 68 107 150 210
(¦¤p=280bar) in nmax Pmax Kw 27.7 27.7 39 55 73 93 118
Max. power in 1500 r/min 12.6 12.6 20 32 50 70 98
(¦¤p=280bar) in Vg max Tmax Nm 80.1 80.1 125 200 316 445 623
Max. torque
Weight m Kg 12 12 15 21 33 45 60

High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery 1



High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery 2









High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery 3







High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery 4




High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery 5

Our pumps are mainly used for construction machinery, geological drilling equipment, special vehicles,mining machinery, lifting and transporting equipment, cranes, ship machinery, agricultural and forestry machinery, and so on.

High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery 6



Shipping

urgent & small gross weight by air

big gross weight by sea

High Pressure Hydraulic Axial Piston Pump For Excavator Mine Machinery 7









FAQ:



Q: Are you a manufacturer or trading company?

A: Manufacturer



Q: Your payment?

A: 100% TT in advance



Q: Your minmun order quantity(MOQ)?

A: 1 set



Q: Warranty time?

A: 1 year
