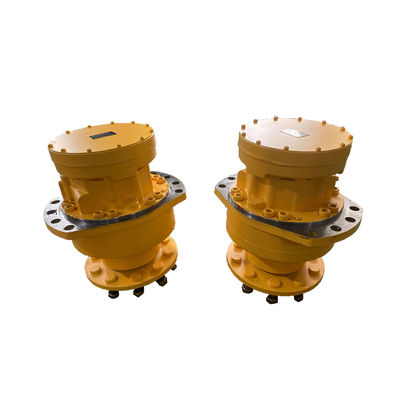

Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load

Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load

    • Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load
    • Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load
  • Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load

    Product Details:

    Place of Origin: Ningbo
    Brand Name: Helm Tower
    Certification: ISO 9001
    Model Number: MS11

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 7-15 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Type: Piston Motor Color: Customized
    Speed: 0-160 R/min Torque: 3127-4704 N.m
    Rated Pressure: 25 MPa Max. Pressure: 40 MPa

    Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load



    Features:



    MS11 Hydraulic Piston Motor

    1) Radial piston type,low speed,high torque
    2) Modular design, High efficiency

    3) High pressure and smooth running even at very low speeds.
    4) Permissible Radial and Axial load, Motor with multi-disc brake,

    5) Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output



    Incurve radial piston low speed large toque hydraulic motor
    Long service life robust rolling bearing
    High power density
    Optional mounting position
    Adopt Imported Bearing and Oil Seal, etc
    Modular design, High efficiency, High pressure tolerance and smooth running even at very low speed
    Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control


    Construction Machinery: Beam Carrier/Hoisting Machine, Cement Concrete Mixing Station, Cinder, Belt Conveyor
    Farming Machinery: Spray Machine
    Mining Machinery: Mini Road Header, Scraper, Heavy Duty Handling Car, Coal Mine Drill
    Marine Machinery: Marine Deck Crane



    MS11 Displacement Diagram



    Type MS11-8 MS11-9 MS11-0 MS11-1 MS11-2
    Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
    837 418 943 471 1048 524 1147 573 1259 629
    Max power(kw) 44 29 44 29 44 29 44 29 44 29

    Pressure discrepancy

    10MPa Torque (N.m)

    1251 613 1409 391 1566 768 1714 840 1882 922
    Rated torque(N.m) 3127 3524 3916 4286 4704
    Rated pressure(MPa) 25 25 25 25 25
    Max pressure(MPa) 40 40 40 35 35
    Rated speed(r/min) 65 65 65 60 60
    Speed range(r/min) 0-160 0-160 0-160 0-150 0-150

    Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load





    Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial LoadPoclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load





    MS11 Connection Diagram

    Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load



    High precision testing facilities and experienced inspectors.



    Poclain MS11 Hydraulic Drive Motor With Permissible Radial And Axial Load
