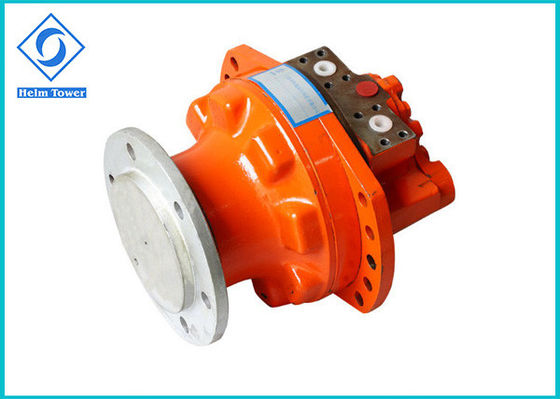

MCR10 Low Speed Hydraulic Motor , Space Saving Radial Hydraulic Motor

MCR10 Low Speed Hydraulic Motor , Space Saving Radial Hydraulic Motor

  • MCR10 Low Speed Hydraulic Motor , Space Saving Radial Hydraulic Motor
  • MCR10 Low Speed Hydraulic Motor , Space Saving Radial Hydraulic Motor
MCR10 Low Speed Hydraulic Motor , Space Saving Radial Hydraulic Motor
Product Details:
Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MCR10
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Piston Motor Color: Customized
Speed: 0-125 R/min Torque: 2560-4400 N.m
Rated Pressure: 25 MPa Max. Pressure: 31.5 MPa
High Light:

two speed hydraulic motor

,

low speed hydraulic motor

MCR10 Low Speed Hydraulic Motor , Space Saving Radial Hydraulic Motor

Features:

Rexroth MCR10/MCRE10 Series Hydraulic Motors

1. Radial piston design.
2. Higher output torques, lower output speed, smoother output speed at low speeds.
3. Optimized and modular design capable of delivering high performance.
4. Highly efficient at any speed or operating pressure.
5. Withstand the most extreme operating conditions and require very little maintenance.




MCR10 Displacement Diagram



Code HMCR10 HMCRE10
Displacement Group 0 1 2 0 1 2
Displacement(ml/r) 780 860 940 1120 1250 1340
Theoretical torque at 10Mpa(N.m) 1240 1367 1494 1780 1987 2130
Rated speed(r/min) 125 100 100 100 80 80
Rated pressure(Mpa) 25 25 25 25 25 25
Rated torque(N.M) 2560 2820 3090 3680 4110 4400
Max.pressure(Mpa) 31.5 31.5 31.5 31.5 31.5 31.5
Max.torque(N.m) 3160 3480 3810 4540 5060 5430
Speed range(r/min) 0-215 0-195 0-180 0-150 0-135 0-125
Max.power(kW) 44 44 44 50 50

50






MCR10 Application:



Mining Machinery: Coal Winning Machine,Road Header,Heavy Duty Handling Car, Coal Mine Drill

Engineering Machinery:Skid Steer Loader,Break Machine





MCR10 Low Speed Hydraulic Motor , Space Saving Radial Hydraulic Motor 0



For instance:
- BELL 220A Telelogger
- HAMM 4011 Road Roller
- BOMAG 211 Soil compactor
- BOMAG 130 AD Road Roller
- BOMAG Roller BW213 D2
- Carterpillar 226B,
- Carterpillar CS-563 compactor
- John Deere 280 skid steer,
- BOBCAT T190 skid steer and excavators
- VERMEER Horizontal Directional Drill
- SANDVIK Machine
- Gehl 6635 Skid steer
- Greenbeans and pea Harvesting Machine(PMC-979-AT)



MCR10 Connection Dimension

MCR10 Low Speed Hydraulic Motor , Space Saving Radial Hydraulic Motor 1



Motor Test Room

MCR10 Low Speed Hydraulic Motor , Space Saving Radial Hydraulic Motor 2
