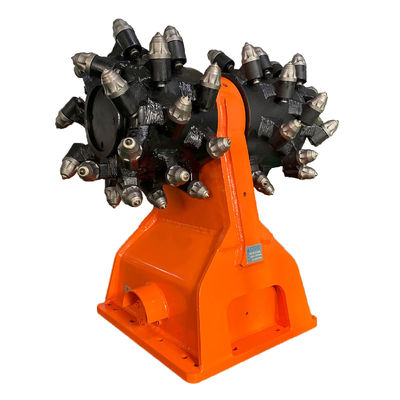

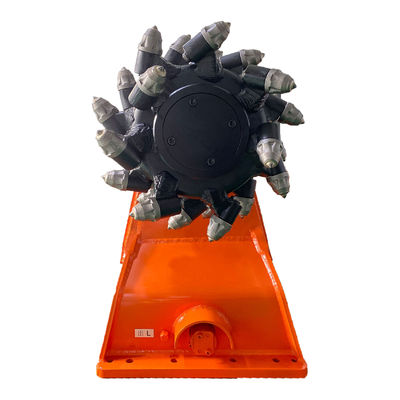

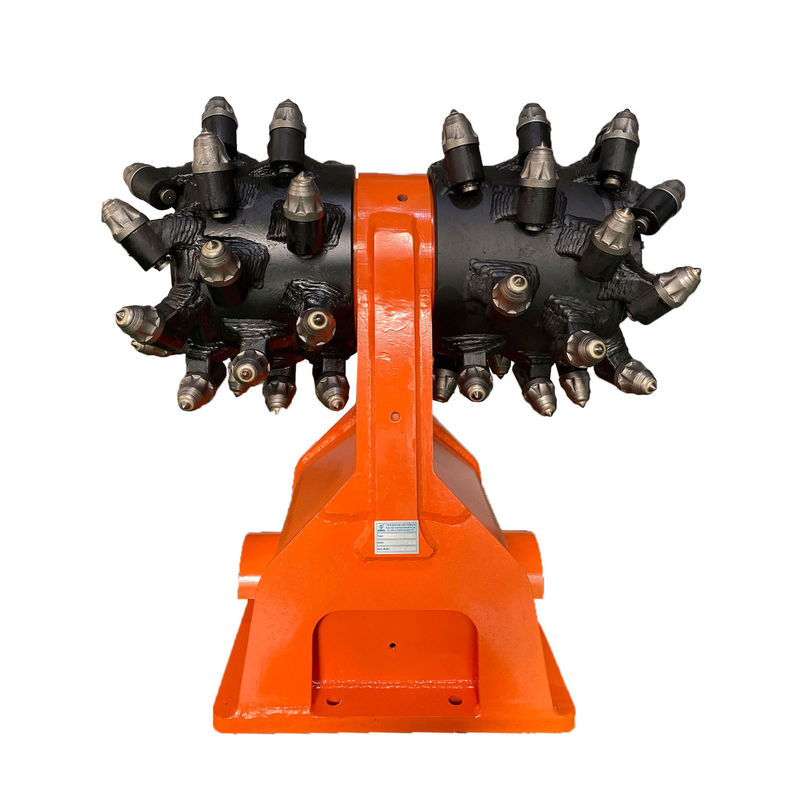

Customized Excavator Hydraulic Drum Cutter HDC05 31.5 Mpa Pressure Customized Color

Customized Excavator Hydraulic Drum Cutter HDC05 31.5 Mpa Pressure Customized Color

    • Customized Excavator Hydraulic Drum Cutter HDC05 31.5 Mpa Pressure Customized Color
    • Customized Excavator Hydraulic Drum Cutter HDC05 31.5 Mpa Pressure Customized Color
    • Customized Excavator Hydraulic Drum Cutter HDC05 31.5 Mpa Pressure Customized Color
  • Customized Excavator Hydraulic Drum Cutter HDC05 31.5 Mpa Pressure Customized Color

    Product Details:

    Place of Origin: China
    Brand Name: Helm Tower
    Certification: ISO
    Model Number: HDC05

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: Export plywood case
    Delivery Time: 5-8 working days
    Payment Terms: T/T, L/C
    Supply Ability: 100pcs per month
    Contact Now
    Detailed Product Description
    Model: HDC05 Max. Pressure: 31.5 Mpa
    Color: Customized Mounting Blacket: Without
    Width: Customized

    ustomized Excavator Hydraulic Drum Cutter HDC05 31.5 Mpa Pressure Customized Color



    Features:



    Hydraulic Rotary Drum Cutter:



    1) Low shake, low noise, low cost.



    2) Construction safety, high efficiency, small particle milling dug directly when the backfill.



    3) Flexible, according to operating environment, the replacement the different milling dig cutter, milling ditch dug round rock saws disk, etc.Replacement is simple and convenient.



    4) Simple installation and maintenance of economic, efficient alternative to the bucket, hammer and other tools, great fun and a strong feeling of power to the new are under construction.



    Specifications:


    HDC05/HDCE05 series Horizontal Drum Cutter
    HDC05
    Code 6 8 0 1 2
    Displacement(ml/r) 260 376 468 514 560
    Max power(KW) 29
    Rated pressure(Mpa) 25
    Max pressure(Mpa) 31.5
    Rated torque N,m(25Mpa) 927 1341 1674 1836 1998
    Max torque N.m(31.5Mpa) 1168 1689 2109 2313 2520
    Rated speed(rpm) 160 160 125 125 125
    Max speed 265 250 240 220 200
    Teeth Number 56
    Weight(kg) 381
    Suitable range suitable Excavator 3-16 tons





    HDCE05
    Code 0 1 2 3
    Displacement(ml/r) 625 688 750 820
    Max power(KW) 29
    Rated pressure(Mpa) 25
    Max pressure(Mpa) 31.5
    Rated torque N.m(25Mpa) 2232 2460 2682 2925
    Ma torque N.m(31.5Mpa) 2812 3100 3380 3685
    Rated speed(rpm) 100
    Max speed 190 175 160 140
    Teeth Number 56
    Weight(kg) 381
    Suitable range suitable Excavator 3-16 tons

    Customized Excavator Hydraulic Drum Cutter HDC05 31.5 Mpa Pressure Customized Color



    Applications:



    1) Cutting of trenches and shafts in hard ground.

    2) Trimming of concrete and asphalt.

    3) Trimming the surface of secant bored piles.

    4) Cutting of tunnel profiles.

    5) Any kind of rock excavation.

    6) Removing stumps and roots of trees.

    m

    Customized Excavator Hydraulic Drum Cutter HDC05 31.5 Mpa Pressure Customized Color
