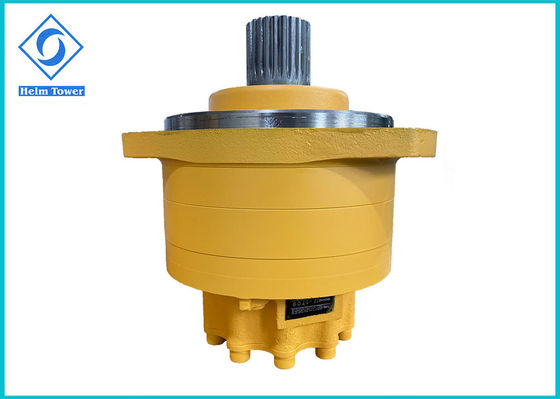

Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing

Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing

Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing
Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing

Product Details:

Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS05

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Type: Piston Motor Color: Customized
Speed: 0-200 R/min Torque: 1405-2092 N.m
Rated Pressure: 25 MPa Max. Pressure: 40 MPa
High Light:

radial piston hydraulic motor

,

industrial hydraulic motor

Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing



Features:



MS05 Hydraulic Piston Motor
Radial piston type,
Adopt Imported Bearing and Oil Seal, etc,
Modular design, High efficiency, High pressure and smooth running even at very low speeds,

Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.



MS05 Displacement Diagram



Type

Displacement

MS05-8 MS05-9 MS05-0 MS05-1 MS05-2
Full/Semi Full/Semi Full/Semi Full/Semi Full/Semi
Displacement(ml/r) 376 188     468 234 514 257 560 280
Max power(kw) 25 17     25 17 25 17 25 17

Pressure discrepancy

10MPa Torque (N.m)

562 275     699 343 768 376 837 410
Rated torque(N.m) 1405   1749 1921 2092
Rated pressure(MPa) 25   25 25 25
Max pressure(MPa) 40   40 35 35
Rated speed(r/min) 90   90 85 80
Speed range(r/min) 0-200   0-200 0-190 0-180





Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing 0Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing 1

Application:



Engineering Machinery: Cinder,Skid steer loader, Explosion- proof Forklift,Forklift,Beam Carrier/Hoisting Machine.

Farming Machinery: Mini Farming Vehicle, Combine Harvesters and Cotton Pickers.

Mining Machinery: Scraper, Road Header, Heavy Duty Handling Car, Coal Mine Drill.

Special Vehicles: Fire Engine.



Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing 2Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing 3



MS05 Connection Dimension

Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing 4



High precision testing facilities and experienced inspectors.



Poclain MS05 Hydraulic Piston Motor Long Service Life Robust Rolling Bearing 5
