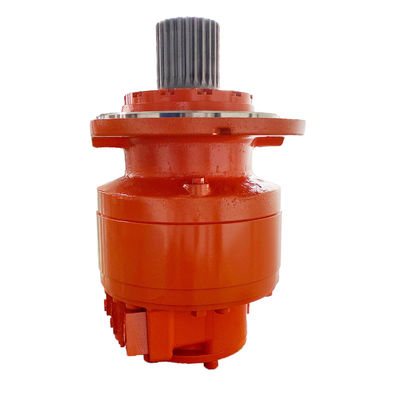

Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly

Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly

    • Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly
    • Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly
  • Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly

    Product Details:

    Place of Origin: Ningbo
    Brand Name: Helm Tower
    Certification: ISO 9001
    Model Number: MS50

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 7-15 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Type: Piston Motor Color: Customized
    Speed Range: 0-100 R/min Torque Range: 13077-22463 N. M
    Rated Pressure: 25MPa Max Pressure: 40MPa
    High Light:

    hydraulic wheel drive motor

    ,

    hydraulic track drive motor

    Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly



    Over the years, motors from the MS range have become an unrivaled benchmark on the hydraulic motor market thanks to their ability to meet our customers' requirements perfectly in terms of performance and reliability.

    The millions that have been sold help to meet the needs of machine manufacturers and end users every day.

    The MS range proves how modular it is by adapting to your machines as much as possible. It equips both mobile and industrial applications equally well.

    Features :

    • Compacity
    • Optimized cost
    • Power density



    MS25 Displacement Diagram



    Type MS50-8 MS50-9 MS50-0 MS50-1 MS50-2
    Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
    3500 1750 4008 2004 4996 1747     6012 3006
    Max power(kw) 123 82 123 82 123 65     123 82
    Pressure discrepancy 10MPa Torque
    (N. m)
    5231 2562 5990 2935 7467 2558     8985 4402
    Rated torque(N. m) 13077 14975 18667   22463
    Rated pressure(MPa) 25 25 25   25
    Max pressure(MPa) 40 40 40   35
    Rated speed(r/min) 40 40 40   35
    Speed range(r/min) 0-100 0-100 0-100   0-90



    Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly 0Applications:



    Construction Machinery: Road Roller, Forging Manipulators, Bucket Wheel Machine.

    Marine Machinery: Marine Deck Crane, Gantry Crane Equipment.

    Mining Machinery: Heavy Duty Handling Car, Coal Mine Drill.





    Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly 1Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly 2



    MS35 Connection Dimension

    Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly 3





    High precision testing facilities and experienced inspectors.



    Compact Structure Two Speed Hydraulic Motor Controlled Easily And Smoothly 4
