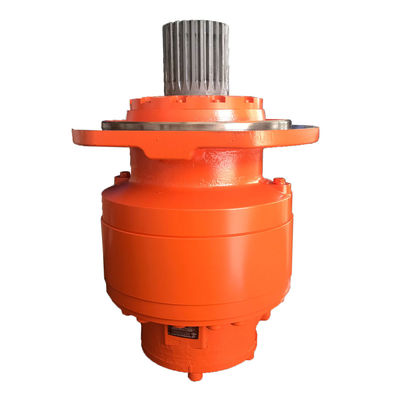

Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed

Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed

    • Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed
    • Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed
    • Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed
    • Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed
    • Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed
  • Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed

    Product Details:

    Place of Origin: Ningbo
    Brand Name: Helm Tower
    Certification: ISO 9001
    Model Number: MS83

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 7-15 working days
    Payment Terms: L/C, T/T
    Supply Ability: 300 units per month
    Contact Now
    Detailed Product Description
    Type: Piston Motor Color: Customized
    Speed Range: 0-65 R/min Torque Range: 21700-32550 N. M
    Rated Pressure: 25MPa Max Pressure: 31.5 MPa

    Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed


    Features:



    MS83 HYDRAULIC PISTON MOTOR
    1)Radial piston type,low speed,high torque
    2)Modular design, High efficiency

    3)High pressure and smooth running even at very low speeds.
    4)Permissible Radial and Axial load, Motor with multi-disc brake,

    5)Controlled by motor displacement,which divided by single-displacement and double-displacement.The single-displacement is complete displacement output,and the double-displacement controlled by valve to carry out the speed by its complete displacement or half displacement output



    Displacement diagram:



    Displacement Group 8 0 2
    Displacement(ml/r) 6679 8328 10019
    Theoretical torque a 10Mpa(N.m) 10620 13242 15930
    Rated speed(r/min) 63 50 40
    Rated pressure(Mpa) 25 25 25
    Rate torque(N.m) 21700 27050 32550
    Max pressure(Mpa) 31.5 31.5 31.5
    Max torque(N.m) 27050 33750 40600
    Speed range(r/min) 0-65 0-52 0-43
    Max power(kW) standard displacement is 220kw,variable displacement priority rotation 135kw





    Applications:



    Construction Machinery

    Shield Machine, Forging Manipulator,Bucket Wheel Machine,Oil Drilling Equipment

    Mining Machinery

    Heavy duty handling car,coal mine drill

    Marine Machinery

    Marine Deck Crane, Gantry Crane Equipment.



    Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low SpeedConstruction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed



    MS83 Connection Dimension





    Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed







    High precision testing facilities and experienced inspectors.

    Construction Industry Hydraulic Drive Motor Modular Design Operate At Very Low Speed
