Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001 | Type: | Professional Lifting Equipment Cable Electric Winch |
|---|---|---|---|
| Color: | Customer Requirement | Warranty: | 1 Year |
| Package: | Wooden Case | Material: | Steel |
| Delivery Time: | 1-3 Days | MOQ: | 1 Set |
| High Light: | hydraulic powered winch,hydraulic cable winch |
||

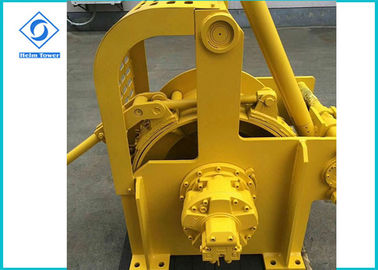

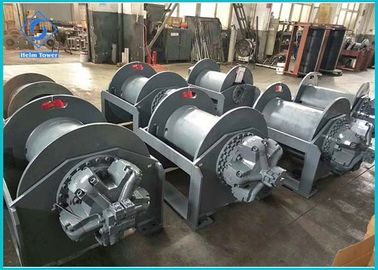

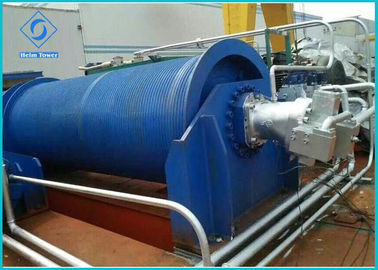

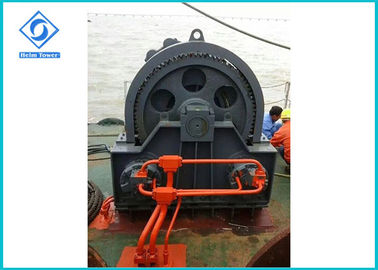

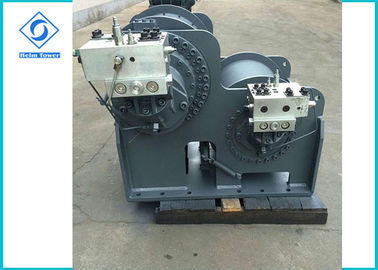

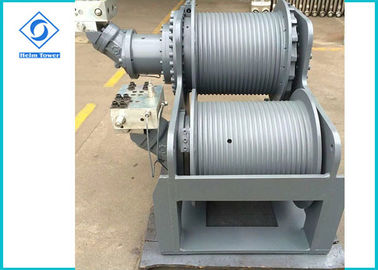

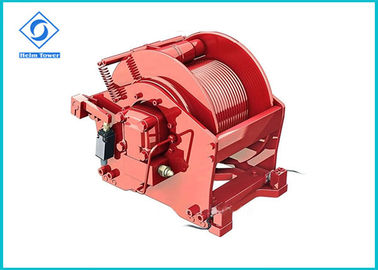

Professional Lifting Equipment Industrial Hydraulic Winch With Stepless Speed
Features:
WENKUI hydraulic winch is made up of hydraulic motor, multi-disc friction brake, planet gearbox decelerator, spool and bracket as a whole. There are shuttle valve and balance valve in the lifting weight from dropping also it can keep loading and unloading stable. Stepless speed, high starting efficiency, reliable, easy to install and control. Widely applied in all kinds of cane for railway transport, shipping, mining, port, etc.
5T/ 10T/ 15T/ 20T/25T/30T Hydraulic winch
With Hydraulic Motor, Gearbox, Brake, Valve, Baseplate, etc;
Capacity 5T/ 10T/ 15T/ 20T/ 30T, etc;
Cable diameter 20MM/ 28MM/ 32MM, etc;
Cable lenth 50M/ 100M/ 300M/ 500M, etc;
Speed 40/ 20/ 10MPM, etc;
Working pressure 30MPa/ 25MPa/ 20Mpa/ 16.3Mpa, etc
High starting and working efficiency, Low energy consuming,
Low noise, Compact size.
| Linepull(1st layer)F(kN) | Whole displacement(ml/r) | Working pressureP( Mpa) | Rope diameterD(mm) | Layers | |
| Type | |||||
| EHW10 | 10 | 610 | 15 | 10 | 4 |
| EHW20 | 20 | 1442 | 14 | 12 | 4 |
| EHW30 | 30 | 2455 | 14.5 | 15 | 4 |
| EHW40 | 40 | 3267 | 14.5 | 16 | 4 |
| EHW50 | 50 | 4961 | 13.6 | 20 | 4 |
| EHW60 | 60 | 6138 | 14.2 | 21.5 | 4 |
| EHW80 | 80 | 9983 | 14.5 | 24 | 4 |
| EHW100 | 100 | 14113 | 13 | 28 | 4 |
| EHW120 | 120 | 16714 | 17 | 30 | 4 |
| EHW150 | 150 | 19904 | 18 | 34 | 4 |
| EHW180 | 180 | 23430 | 18 | 38 | 4 |
| Linepull(1st layer)F(kN) | Whole displacement(L/r) | Working pressureP( Mpa) | Rope diameterD(mm) | Layers | |
| Type | |||||
| MHW-2 | 18 | 0.56 | 20.6 | Φ11 | 4 |
| MHW-3.5 | 34 | 1.747 | 18.7 | Φ16 | 4 |
| MHW-5 | 48 | 2.498 | 21.4 | Φ19 | 4 |
| MHW-7 | 69 | 4.198 | 20.7 | Φ22 | 4 |
| MHW-10 | 98 | 6.012 | 23.6 | Φ26 | 4 |
| MHW-12 | 119 | 9.16 | 21.3 | Φ30 | 4 |
| MHW-15 | 148 | 12.5 | 21.1 | Φ32.5 | 4 |
| MHW-18 | 184 | 16.656 | 21.5 | Φ37 | 4 |
| MHW-22 | 220 | 22.5 | 20.5 | Φ40 | 4 |
| MHW-30 | 315 | 40 | 19.7 | Φ47 | 4 |
| MHW-40 | 408 | 60 | 19.5 | Φ55 | 4 |
| MHW-55 | 566 | 90 | 19.6 | Φ65 | 4 |
| MHW-65 | 660 | 115 | 20 | Φ70 | 4 |
| MHW-80 | 787 | 150 | 20.2 | Φ75 | 4 |
| MHW-100 | 1075 | 240 | 20.1 | Φ90 | 4 |
Applications:
