    Product Details:

    Place of Origin: Ningbo
    Brand Name: Helm Tower
    Certification: ISO 9001
    Model Number: MS50

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: Standard Export Wooden Case
    Delivery Time: 7-15 working days
    Payment Terms: L/C, T/T
    Supply Ability: 1000 units per month
    Contact Now
    Detailed Product Description
    Type: Piston Motor Color: Customized
    Speed Range: 0-100 R/min Torque Range: 13077-22463 N. M
    Rated Pressure: 25MPa Max Pressure: 40MPa

    Permissible Radial Low Speed High Torque Hydraulic Motor Strong Wear Resistant



    Features:

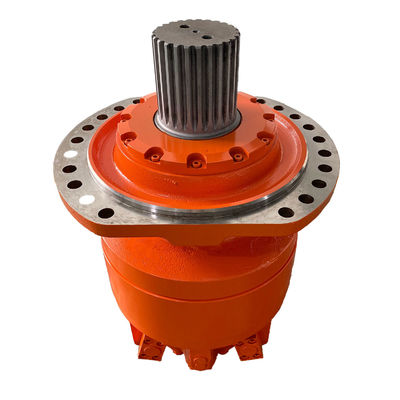

    POCLAIN MS50 Hydraulic Motor:

    1). Radial piston type;

    2). Adopt Imported Bearing and Oil Seal, etc.

    3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.

    4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.



    Hydraulic shaft motors: multi-cam radial pistons. Standard manufacture splined shaft (DIN), one or two speeds, with or without brake (integral multi-disc wet brake).

    Also available as a hydraulic wheel motor with flanged output shaft or drum brake on some models.

    “S” Series are available with larger displacements in smaller bodies to give a compact design. This results in lower pressures and speeds.



    MS50 Displacement Diagram



    Type MS50-8 MS50-9 MS50-0 MS50-1 MS50-2
    Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
    3500 1750 4008 2004 4996 1747     6012 3006
    Max power(kw) 123 82 123 82 123 65     123 82
    Pressure discrepancy 10MPa Torque
    (N. m)
    5231 2562 5990 2935 7467 2558     8985 4402
    Rated torque(N. m) 13077 14975 18667   22463
    Rated pressure(MPa) 25 25 25   25
    Max pressure(MPa) 40 40 40   35
    Rated speed(r/min) 40 40 40   35
    Speed range(r/min) 0-100 0-100 0-100   0-90




    Permissible Radial Low Speed High Torque Hydraulic Motor Strong Wear Resistant



    Applications:



    Construction Machinery: Road Roller, Forging Manipulators, Bucket Wheel Machine.

    Marine Machinery: Marine Deck Crane, Gantry Crane Equipment.

    Mining Machinery: Heavy Duty Handling Car, Coal Mine Drill.





    Permissible Radial Low Speed High Torque Hydraulic Motor Strong Wear ResistantPermissible Radial Low Speed High Torque Hydraulic Motor Strong Wear Resistant



    MS35 Connection Dimension

    Permissible Radial Low Speed High Torque Hydraulic Motor Strong Wear Resistant





    High precision testing facilities and experienced inspectors.



    Permissible Radial Low Speed High Torque Hydraulic Motor Strong Wear Resistant
