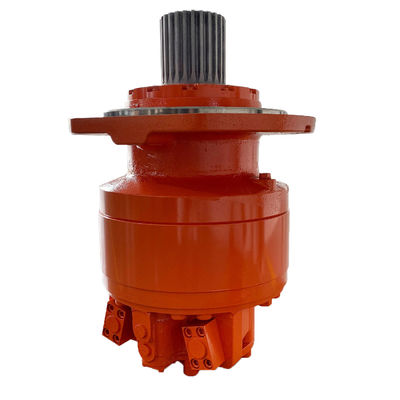

Helm Tower Replace Rexroth MS50 High Pressure Hydraulic Motor

Helm Tower Replace Rexroth MS50 High Pressure Hydraulic Motor
Helm Tower Replace Rexroth MS50 High Pressure Hydraulic Motor Helm Tower Replace Rexroth MS50 High Pressure Hydraulic Motor

Large Image :  Helm Tower Replace Rexroth MS50 High Pressure Hydraulic Motor

Product Details:

Place of Origin: Ningbo
Brand Name: Helm Tower
Certification: ISO 9001
Model Number: MS50

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Standard Export Wooden Case
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 units per month
Detailed Product Description
Type: Piston Motor Color: Customized
Speed Range: 0-100 R/min Torque Range: 13077-22463 N. M
Rated Pressure: 25MPa Max Pressure: 40MPa
Warranty: 1 Year Application: Agriculture/Engineering/Coal Mining/Marine /Construction Machinery
Name: Radial Piston Hydraulic Motor
High Light:

radial piston hydraulic motor

,

axial piston hydraulic motor

,

100 r/min Hydraulic Motor

Helm Tower Replace Rexroth MS50 High Pressure Hydraulic Motor



Features:



POCLAIN MS50 Hydraulic Motor:

1). Radial piston type;

2). Adopt Imported Bearing and Oil Seal, etc.

3). Modular design, High efficiency, High pressure and smooth running even at very low speeds.

4). Permissible Radial and Axial load, Motor with multi-disc brake, Motor emission control.




MS50 Displacement Diagram



Type MS50-8 MS50-9 MS50-0 MS50-1 MS50-2
Displacement(ml/r) Full Semi Full Semi Full Semi Full Semi Full Semi
3500 1750 4008 2004 4996 1747     6012 3006
Max power(kw) 123 82 123 82 123 65     123 82
Pressure discrepancy 10MPa Torque
(N. m)
5231 2562 5990 2935 7467 2558     8985 4402
Rated torque(N. m) 13077 14975 18667   22463
Rated pressure(MPa) 25 25 25   25
Max pressure(MPa) 40 40 40   35
Rated speed(r/min) 40 40 40   35
Speed range(r/min) 0-100 0-100 0-100   0-90



Applications



Construction Machinery: Road Roller, Forging Manipulators, Bucket Wheel Machine.

Marine Machinery: Marine Deck Crane, Gantry Crane Equipment.

Mining Machinery: Heavy Duty Handling Car, Coal Mine Drill.





Helm Tower Replace Rexroth MS50 High Pressure Hydraulic Motor 0Helm Tower Replace Rexroth MS50 High Pressure Hydraulic Motor 1
